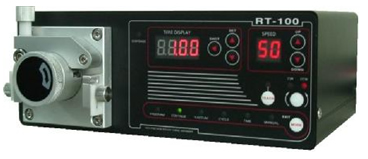

RT-100 Rotary Tubing Dispenser
Features：
| ※ RT-100 is for low viscosity material use only, such as cyanoacrylate adhesives, UV adhesives. |
| ※ Easy function setting and operating, save cost. |
| ※ Smart design for changing tube easy. |
| ※ No air source required. |
| ※ With teaching and program memory saving function. |
| ※ Compatible with SR-D series automated dispensing robots. |
| ※ Fully range input power. |
| ※ One year warranty. |
Specifications :
Mode |
RT-100 |
Power input |
AC110/220V 50/60Hz |
Speed |
0.01~6ml/min 0.1~20ml/min |
Shot pressure |
1.5kg/cm2以上 |
Rotor speed |
~MAX120rpm |
Rotor way |
CW / CCW |
Shot time range |
0.01~99.99sec |
Overall dimensions |
210 x 150 x 80 mm |
Weight |
3.5 kg |
