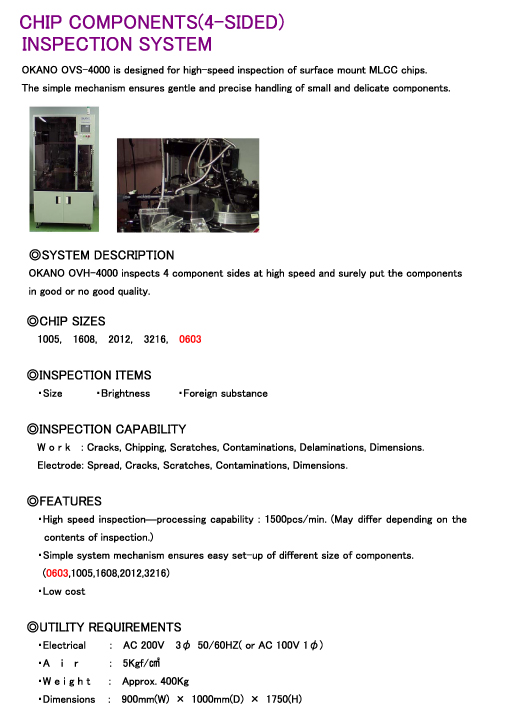

OKANO OVS-4000, 4-Sided Chip Component Inspection System
Designed for high-speed inspection of surface mount MLCC Chip.
Simple mechanism ensures gentle and precise handling of small and delicate components.
System Description: OKANO OVH-4000 inspects 4 sides of component at high speed to detect good vs bad quality components.
Chip sizes: 1005, 1608, 2012, 3216, 0603
Inspection Items: Size, brightness, foreign substances
Inspection Capability (for electrodes and general detection): Cracks, chipping scratches, contamination, delamination, dimension, spreads.
Feature: High speed inspection and processing capability: 1500pcs/min (may differ depending on the contents of inspection.)
Simple system allows easy setup for different sized components. (0603, 1005, 1608, 2012, 3216)
Low Cost
Spec:
Power: AC 200V 3-Phase 50/60Hz (or AC 100V Single Phase)
Air: 5kgf/cm
Weight: Approx 400kg
Dimension: 900mm(W) x 1000mm(D) x 1750mm(H)
|
|
|
